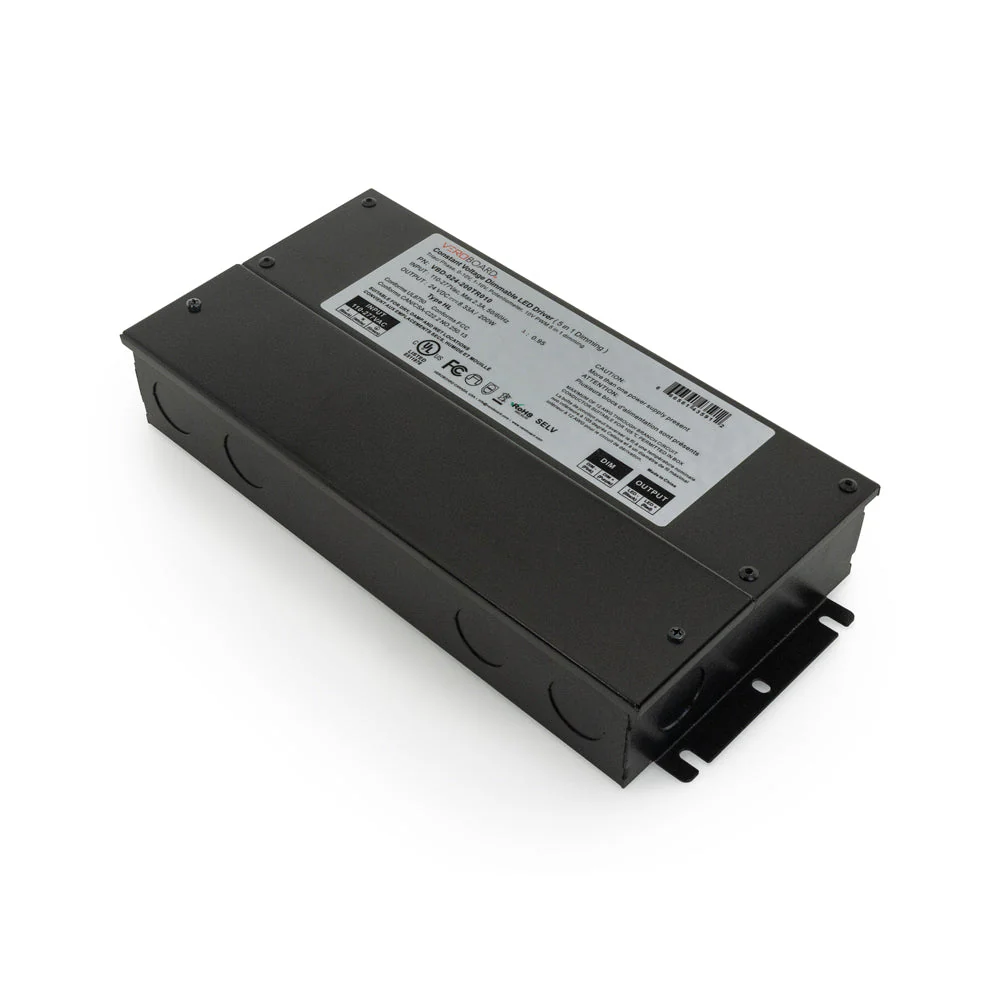

5in1 Dimming Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM, LED Driver 24V 200W

Model	VBD-024-200TR010
Input Voltage	100-277V AC
Input Current	2.3A
Frequency	50-60 Hz
Power Factor	>0.95
Output Voltage	24V DC
Output regulated Current	8.33A
Output Power	200W max
Dimmable	Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM)
IP Rating	IP67 (Dry, Damp and Wet Locations)
Dimensions	240 x 123.7 x 45.3mm (9.44 x 4.8 x 1.7in)
Class Certification	Type HL
Certifications:

Applicable for dry, damp, and wet locations

Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers



Features:

• 5-in-1 dimming LED driver with support for Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM dimming signals
• Input voltage range of 100-277V AC, input current of 2.3A, and frequency range of 50-60 Hz
• Power factor greater than 0.95 for efficient power usage

• Dimmable driver suitable for use in dry, damp, and wet locations with IP67 rating

• Type HL certified and UL and FCC certified for safety and electromagnetic interference standards
