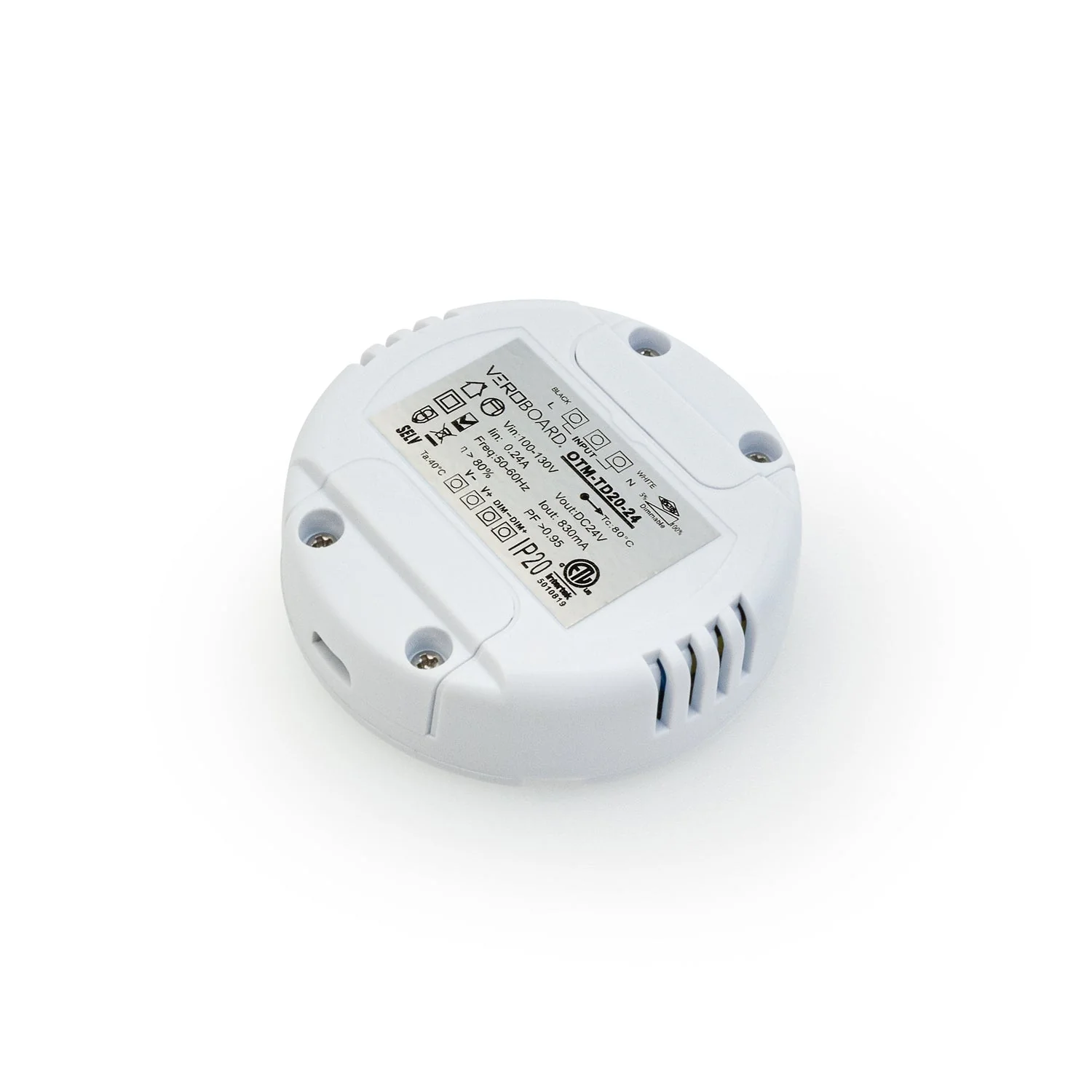

OTM-TD20-24 Constant Voltage LED Driver, 24V 0.83A 20W 0-10V Dimmable

Model	OTM-TD20-24
Input Voltage	100-130V AC
Input Current	0.24A
Frequency	50-60Hz
Efficiency	>80%
Output Voltage	24V DC
Output regulated Current	830mA
Output Power	19.92W max
Power Factor	>0.95
Dimmable	Yes (0-10V Dimming)
IP Rating	IP20
Ambient Temperature (Ta)	40°C
Case Temperature (Tc)	80°C
Class Certification	Class II/ SELV
Dimensions	66.16mm x 20.15mm (2.6 in) Dia x (0.8 in) Depth
Certification

Compatible with 0-10V Dimmers

Applicable for Dry and Damp locations

Short circuit and Overload Protected

Class II Power Supply, Double-layer insulation

Easily fits in a 1-Gang Standard Box or Single Gang Box



Features:

• OTM-TD20-24 LED driver designed for use with dimmable constant voltage LED lighting systems
• Input voltage range: 100-130V AC
• Input current: 0.24A
• Frequency: 50-60Hz
• Efficiency rating: >80%
• Output voltage: 24V DC
• Regulated output current: Up to 830mA
• Maximum output power: 20W
• Power factor: >0.95, indicating high power efficiency
• Dimming control: 0-10V
• IP rating: IP20 (for indoor use only)
• Ambient temperature range: Up to 40°C
• Case temperature limit: 80°C
• Certification: Class II/SELV (for electrical safety)
• Compact dimensions: 66.16mm x 20.15mm
• ETL certified: Meets relevant safety standards
