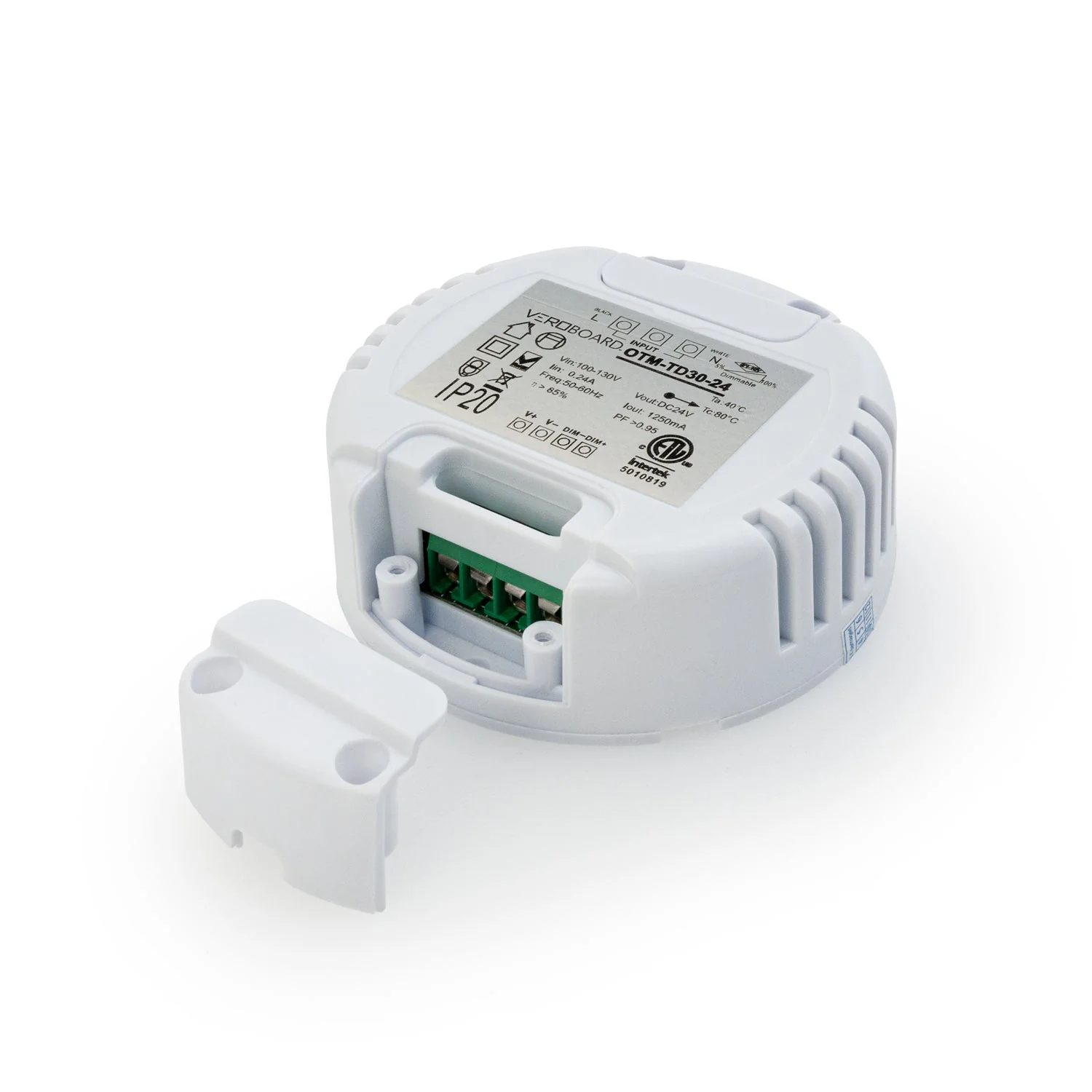

OTM-TD30-24 Constant Voltage LED Driver, 24V 1.25A 30W 0-10V Dimmable

Model	OTM-TD30-24
Input Voltage	100-130V AC
Input Current	0.24A
Frequency	50-60Hz
Efficiency	>85%
Output Voltage	24V DC
Output regulated Current	1.25A
Output Power	30W max
Power Factor	>0.95
Dimmable	Yes (0-10V Dimming)
IP Rating	IP20
Ambient Temperature (Ta)	40°C
Case Temperature (Tc)	80°C
Class Certification	Class II/ SELV
Dimensions	72.40 mm x 26.84mm  (2.85 in) Dia x (1.05 in) Depth
Certification

Compatible with 0-10V Dimmers

Applicable for Dry and Damp locations

Short circuit and Overload Protected

Class II Power Supply, Double-layer insulation

Easily fits in a 1-Gang Standard Box or Single Gang Box



Features:

• Dimmable constant voltage LED driver
• Input voltage range: 100-130V AC, input current: 0.24A, frequency: 50-60Hz
• Efficiency rating: >85%, ensuring high energy efficiency
• Output voltage: 24V DC, providing a consistent voltage for LED lighting systems
• Output current regulation up to 1.25A, allowing for flexible current adjustment
• Maximum output power: 30W, suitable for a wide range of LED lighting applications
• Power factor: >0.95, indicating excellent power efficiency and reduced energy waste
• Dimming control: 0-10V, enabling adjustable brightness levels
• Rated IP20 for indoor use only, ensuring protection against solid objects and preventing water ingress
• Operating temperature: up to 40°C, with a case temperature limit of 80°C, allowing for reliable operation in various environments
• Class II/SELV certified for electrical safety, providing enhanced protection against electric shocks
• Compact dimensions: 72.40mm x 26.84mm (2.85 in) diameter x (1.05 in) depth, offering space-saving installation options
• ETL certified, meeting relevant safety standards and ensuring product reliability and compliance.
