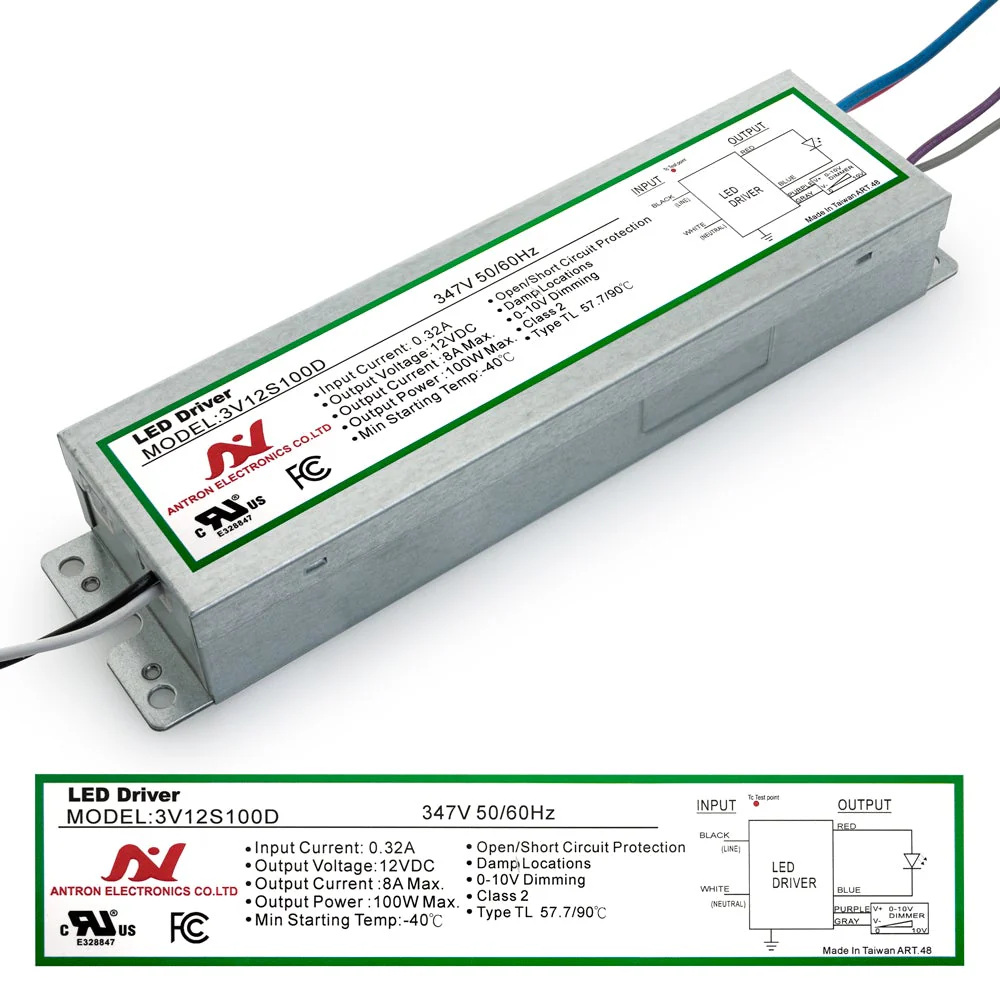

ANTRON 3V12S100D Constant Voltage LED Drive, 0-10V Dimmable with 347V Universal Input Voltage 8A 100W 12V
ANTRON 3V12S100D Constant Voltage LED Drive, 0-10V Dimmable with 347V Universal Input Voltage 8A 100W 12V
| Model | 3V12S100D |
| Input Voltage | 347V AC |
| Case Code | AM105 |
| Input Current | 0.32A |
| Input Frequency | 50/60 Hz |
| Output Voltage | 12V DC |
| Output regulated Current | 8A |
| Output max Power | 100W |
| Dimmable: | Yes (0-10V Dimming) |
| Waterproof | No (Damp locations) |
| IP Rating | IP65 |
| Starting Temperature | -40°C |
| Class Certification | Class 2 / Type TL |
| Dimensions | 2439.7× 57.15 × 36.5mm (9.43 x 2.25 x 1.43 in) |
| Certification |

|
| Open/Short/Over-Voltage/Over Temperature Protection |
| Suitable for Damp locations |
$16.52
Original: $55.07
-70%ANTRON 3V12S100D Constant Voltage LED Drive, 0-10V Dimmable with 347V Universal Input Voltage 8A 100W 12V—
$55.07
$16.52
Description
| Model | 3V12S100D |
| Input Voltage | 347V AC |
| Case Code | AM105 |
| Input Current | 0.32A |
| Input Frequency | 50/60 Hz |
| Output Voltage | 12V DC |
| Output regulated Current | 8A |
| Output max Power | 100W |
| Dimmable: | Yes (0-10V Dimming) |
| Waterproof | No (Damp locations) |
| IP Rating | IP65 |
| Starting Temperature | -40°C |
| Class Certification | Class 2 / Type TL |
| Dimensions | 2439.7× 57.15 × 36.5mm (9.43 x 2.25 x 1.43 in) |
| Certification |
|
| Open/Short/Over-Voltage/Over Temperature Protection |
| Suitable for Damp locations |
