VBD-012-150DM Triac Dimmable Constant Voltage LED Driver, 12V 12.5A 150W



Model	VBD-012-150DM
Input Voltage	100-130V AC
Input Current	2.39A
Frequency	47/63Hz
Power Factor	0.68
Output Voltage	12V DC
Output regulated Current	12.5A
Output Power	150W max
Dimmable	Yes
IP Rating	IP67 (Outdoor rated)

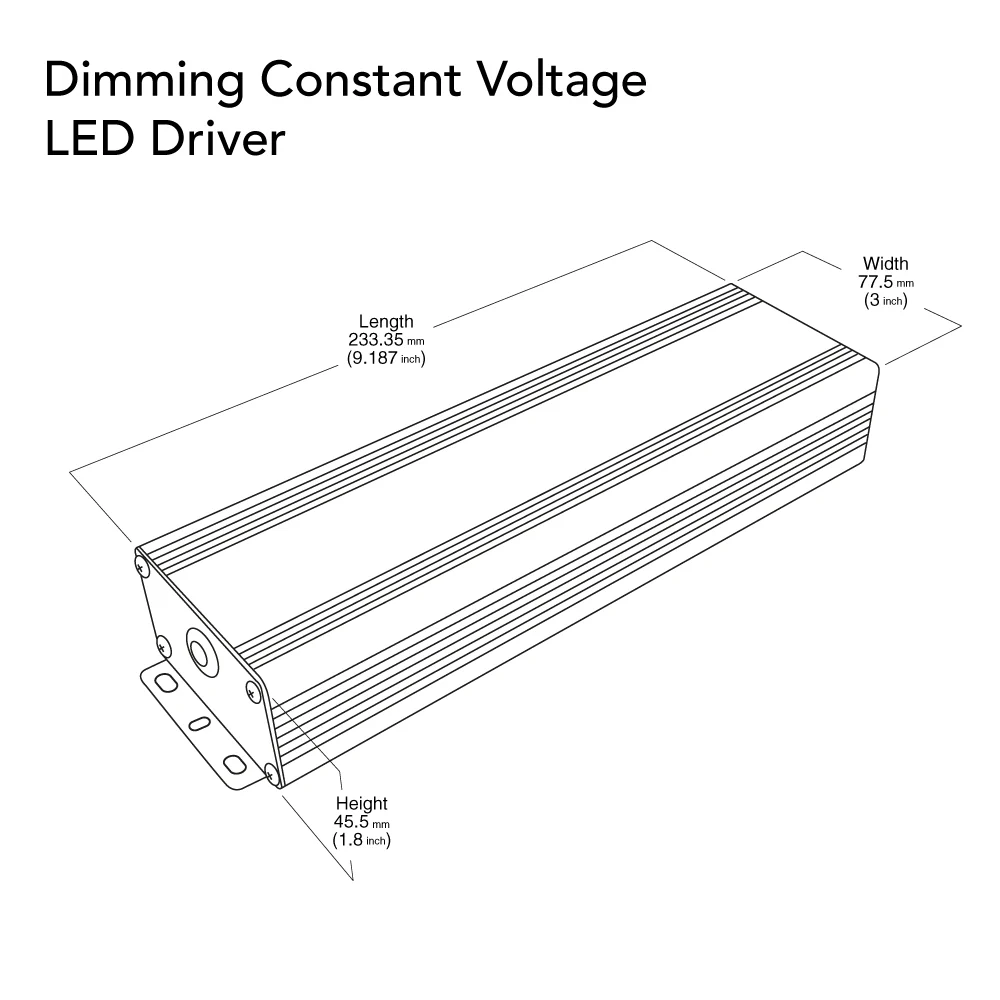

Dimensions (Without Box)	233.35 x 77.5 x 45.5mm (9.18 x 3 x 1.8 in)
Dimensions (Box)	392.1 x 87.3 x 60.32mm (15.4 x 3.43 x 2.37 in)
Certifications

Applicable for dry, damp, and wet locations

Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers



Features:

• Constant voltage LED driver designed for powering LED lighting systems.
• Input voltage of 100-130V AC, frequency of 47/63Hz, input current of 2.39A, and power factor of 0.68.
• Delivers an output voltage of 12V DC and a regulated output current of 12.5A, providing a maximum output power of 150W.
• Triac dimming capability for smooth and seamless dimming of LED lights.
• IP67 rating, suitable for outdoor use and resistant to moisture and dust.
• Dimensions: 233.35 x 77.5 x 45.5mm (9.18 x 3 x 1.8 in) without the box, 392.1 x 87.3 x 60.32mm (15.4 x 3.43 x 2.37 in) with the box.
• ETL certified, meeting safety and performance standards for electrical products.
