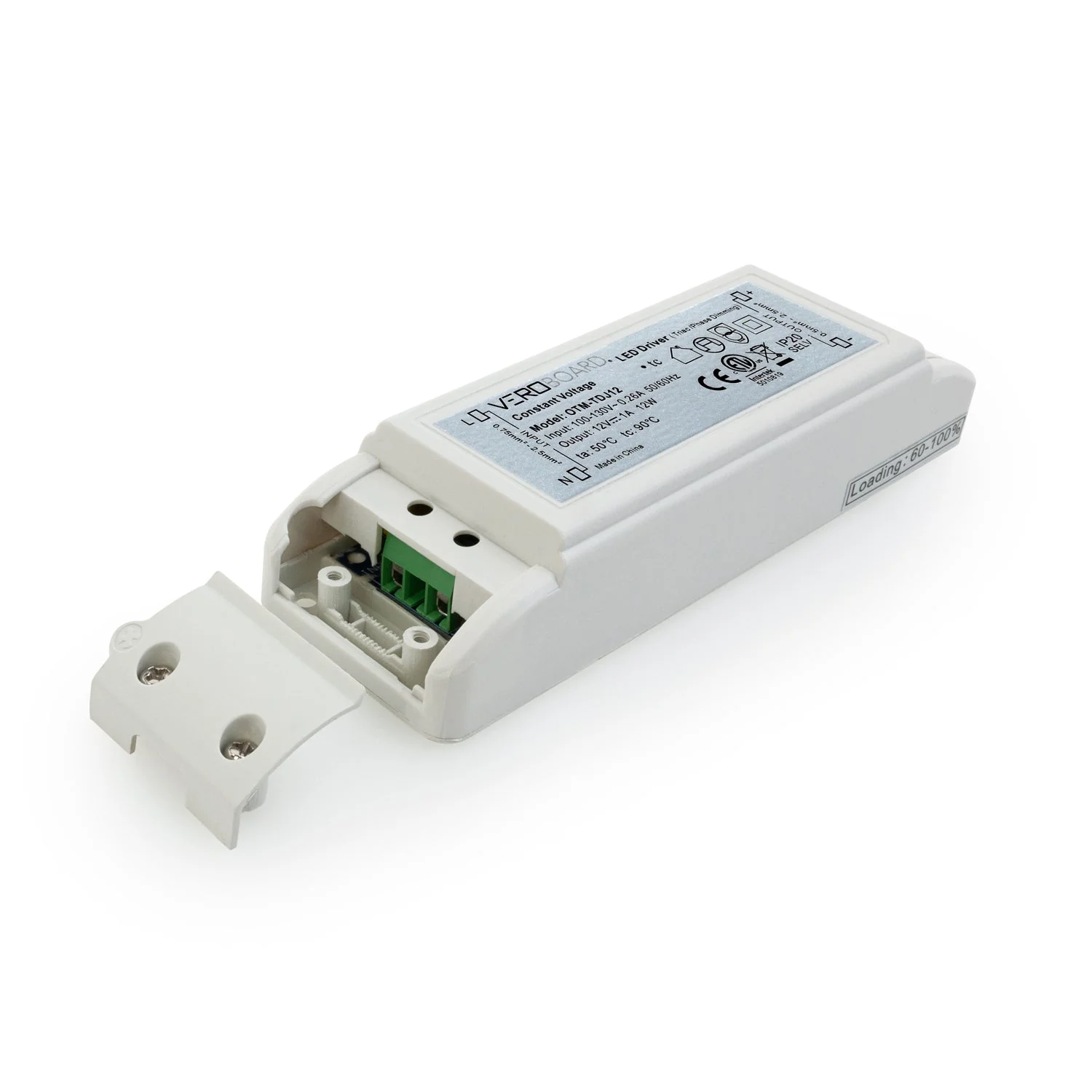

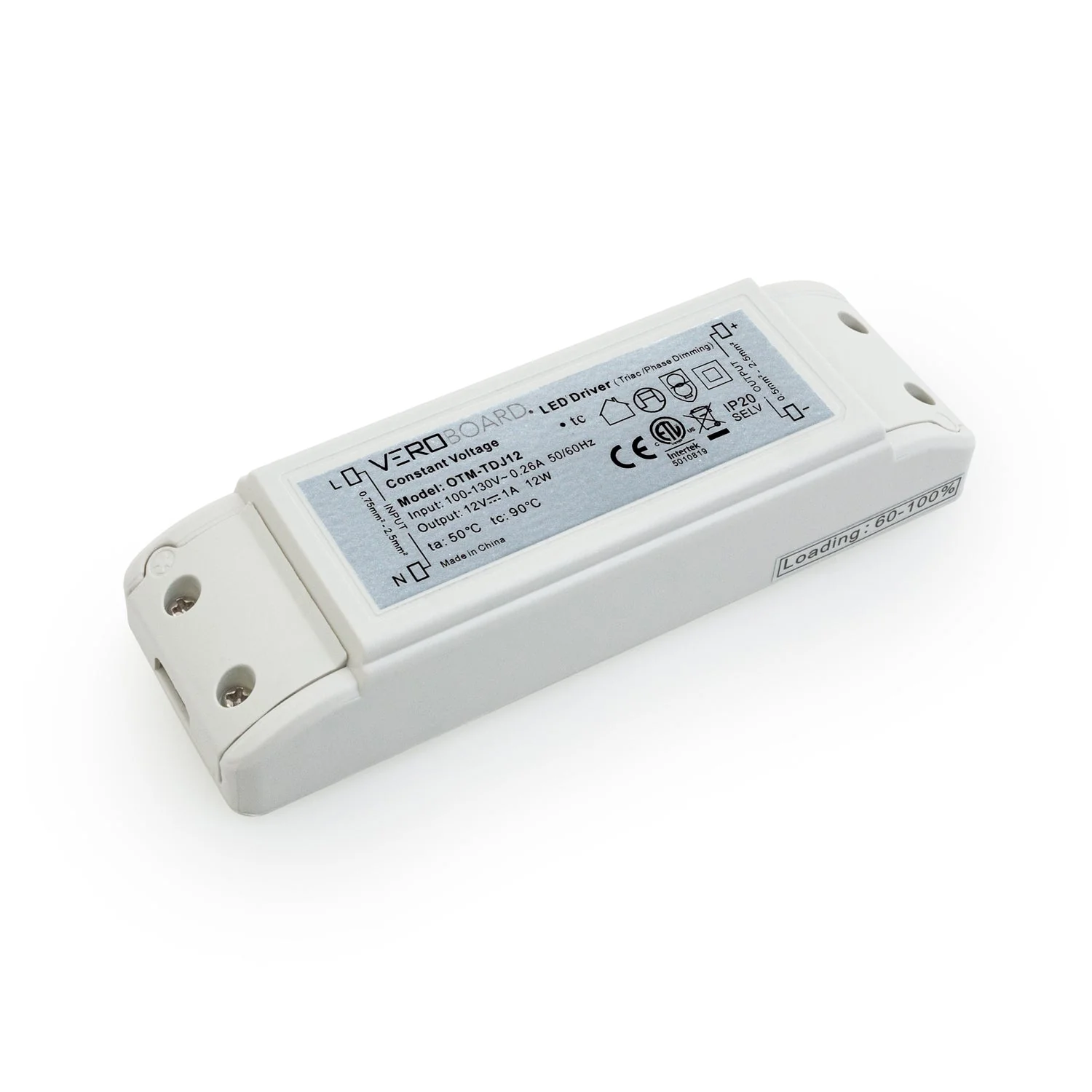

OTM-TDJ12 Constant Voltage Triac Dimming LED Driver,12V 1.0A 12W

Model	OTM-TDJ12
Input Voltage	100-130V AC
Input Current	0.26A
Frequency	50/60Hz
Output Voltage	12V DC
Output regulated Current	1.0A
Output Power	12W
Dimmable	Yes (Triac/Phase Dimming)
IP Rating	IP20 (Indoor Rated)
Ambient Temperature (Ta)	50°C
Case Temperature (Tc)	90°C
Class Certification	Class II/ SELV
Dimensions	140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in)
Certification

Compatible with Forward-Phase & Triac dimmers

Short circuit and overload protected

Applicable for Dry and Damp locations

Class II certified, Double-layer insulation



Features:

• Compact and efficient power supply for LED lighting systems.
• Input voltage range: 100-130V AC, input current: 0.26A, frequency: 50/60Hz.
• Output voltage: 12V DC, output current regulation: up to 1.0A.
• Maximum output power: 12W, suitable for low-power LED lighting applications.
• Triac/Phase dimming technology for adjustable brightness levels.
• IP20 rating for indoor use.
• Maximum ambient temperature (Ta): 50°C, case temperature (Tc): 90°C.
• Class II and SELV certifications for low-voltage safety standards.
• Compact dimensions: 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in).
• ETL certified for safety and compliance with rigorous testing by Intertek.
