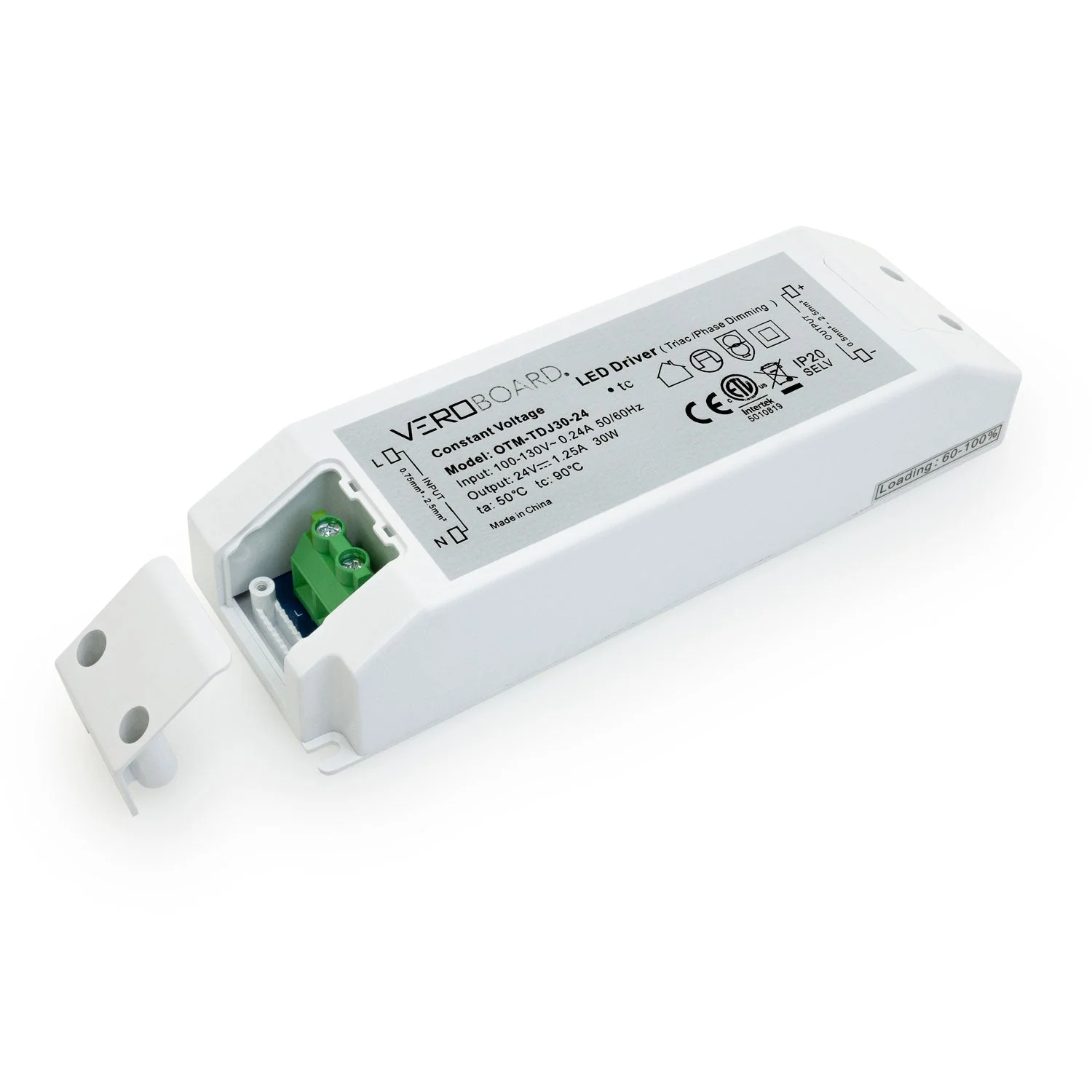

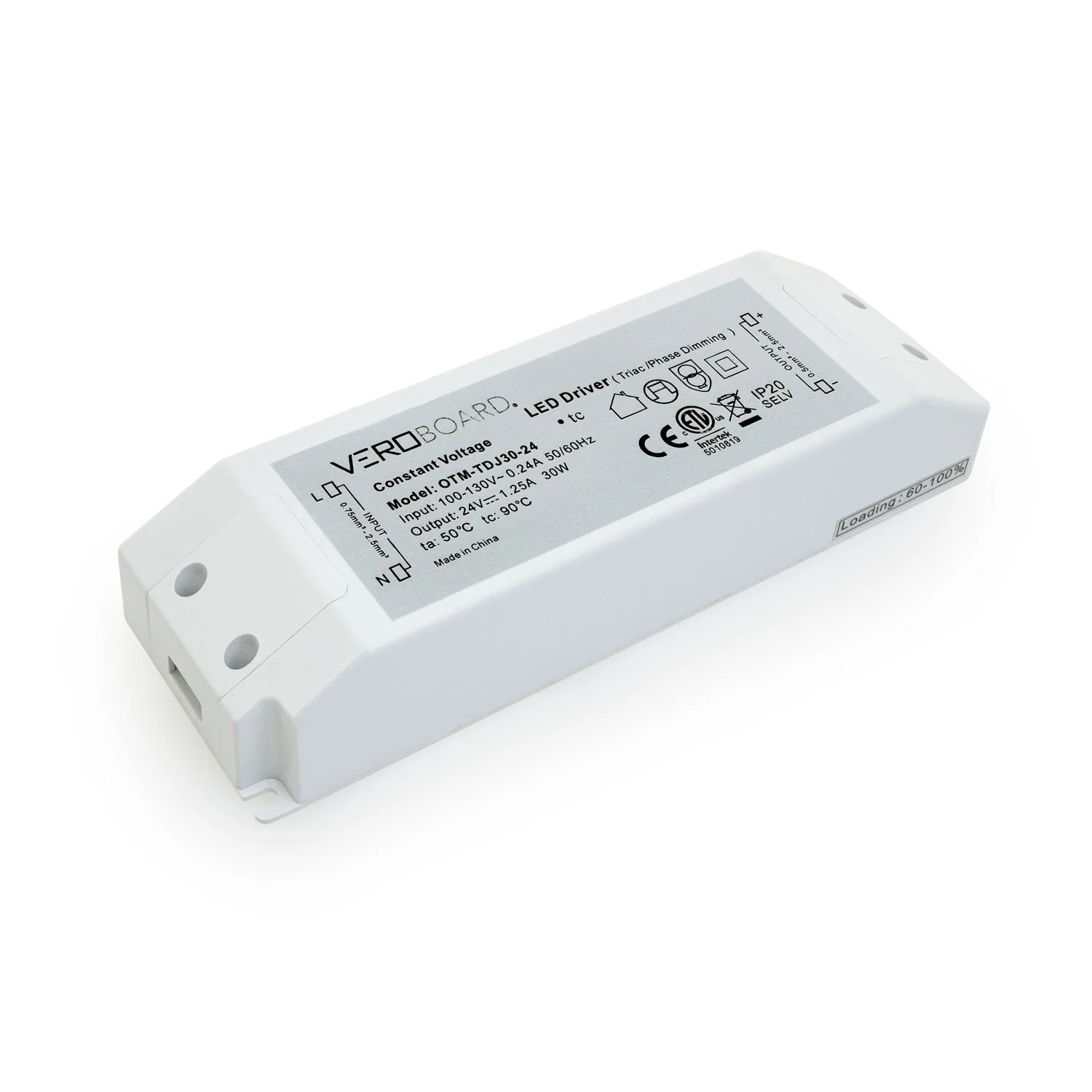

OTM-TDJ30-24 Constant Voltage Triac Dimming LED Driver, 24V 1.25A 30W

Model	OTM-TDJ30-24
Input Voltage	100-130V AC
Input Current	0.24A
Frequency	50/60Hz
Output Voltage	24V DC
Output regulated Current	1.25A
Output Power	30W
Dimmable	Yes (Triac/Phase dimming)
IP Rating	IP20 (Indoor Rated)
Ambient Temperature (Ta)	50°C
Case Temperature (Tc)	90°C
Class Certification	Class II/ SELV
Dimensions	180 x 59.85 x 34.5mm (7 x 2.35 x 1.35in)
Certification

Compatible with Forward-Phase & Triac dimmers

Applicable for Dry and Damp locations

Short circuit and overload protected

Class II certified, Double-layer insulation



Features:

• LED driver type: Triac Dimmable Constant Voltage
• Input voltage range: 100-130V AC
• Input current: 0.24A
• Frequency: 50/60Hz
• Output voltage: 24V DC
• Output regulated current: 1.25A
• Output power: 30W
• Dimming capability: Triac/Phase dimming
• IP rating: IP20 (suitable for indoor use only)
• Ambient Temperature (Ta) range: 50°C
• Case Temperature (Tc) range: up to 90°C
• Certification: Class II/ SELV
• Dimensions: 180 x 59.85 x 34.5mm (7 x 2.35 x 1.35in)
• Certification authority: ETL
