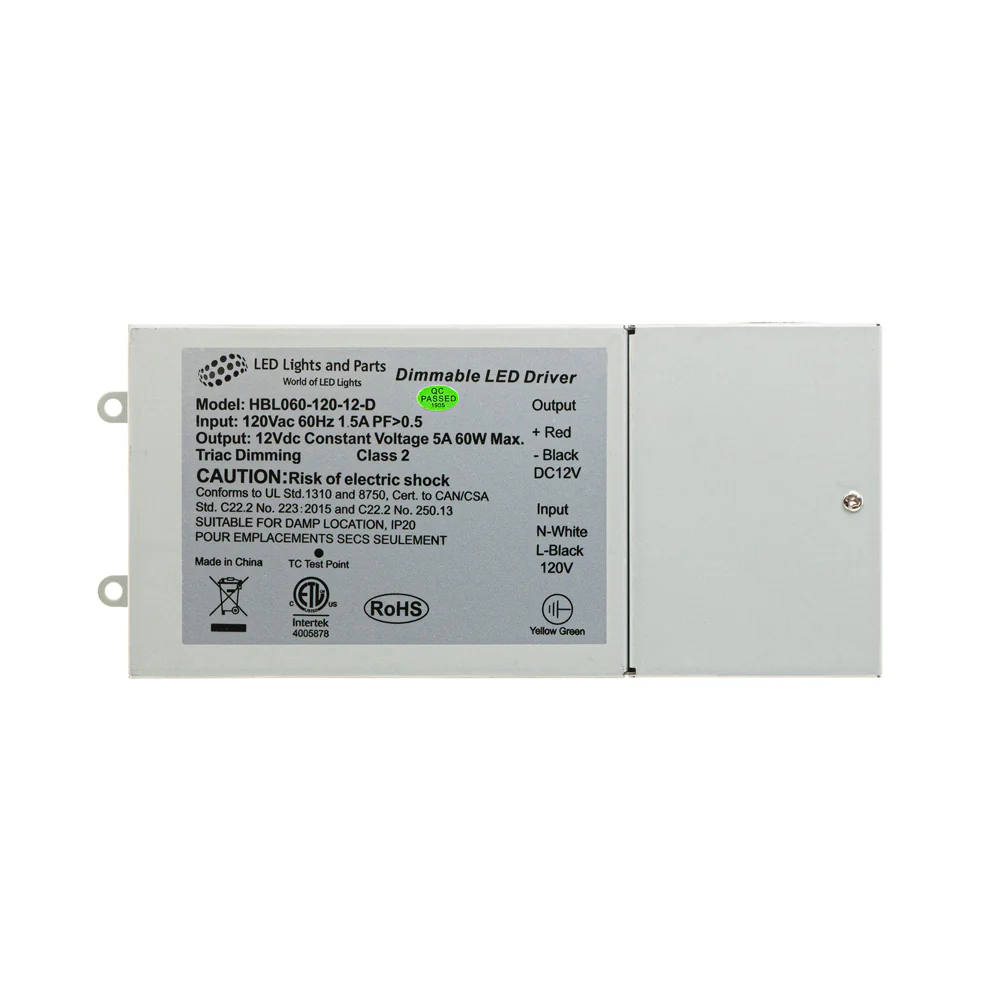

HBL060-120-12-D Metal Case Constant Voltage LED Driver, 12V 5A 60W

Model	HBL060-120-12-D
Input Voltage	120V AC
Input Current	1.5A
Frequency	60Hz
Output Voltage	12V DC
Output regulated Current	5A
Power Factor	>0.5
Output Power	60W max
Dimmable	Yes (Triac dimming)
Class Certification	Class 2
IP Rating	IP20
Dimensions	182 x 85 x 34mm (7.1 x 3.4 x 1.4in)
Certifications

Applicable for Dry and Damp locations

Features:

• Metal case constant voltage LED driver
• Model: HBL060-120-12-D
• Input voltage: 120V AC, input current: 1.5A, frequency: 60Hz
• Output voltage: 12V DC, output regulated current: 5A
• Power factor: >0.5, indicating moderate power efficiency
• Maximum output power: 60W
• Triac dimming control
• Class 2 certified for electrical safety
• IP20 rated for indoor use only
• Compact dimensions: 182 x 85 x 34mm (7.1 x 3.4 x 1.4in)
• ETL certified, meeting relevant safety standards.
