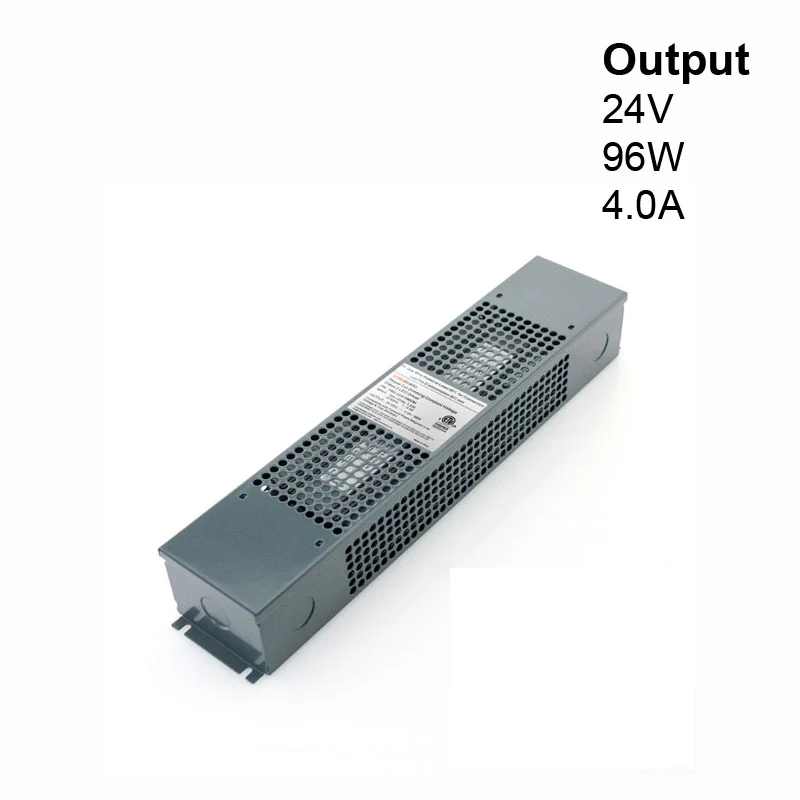

VBD-024-096DM Triac Dimmable Constant Voltage LED Driver, 24V 4A 96W



Model	VBD-024-096DM
Input Voltage	100-130V AC
Input Current	1.53A
Frequency	47/63Hz
Power Factor	0.68
Output Voltage	24V DC
Output regulated Current	4.0A
Output Power	96W max
Dimmable	Yes (Phase-Cut and Triac Dimming)
IP Rating	IP67 (Outdoor rated)
Class Certification	Class 2
Dimensions (without Box)	203 x 70.41x 42mm (8 x 2.77 x 1.65 in)
Dimensions (Box)	361.95 x 78.74 x 56.3mm (14.25 x 3.1 x 221 in)
Certifications

Applicable for dry, damp, and wet locations

Compatible with Forward-Phase, Magnetic low Voltage & Triac Dimmers



Features:

• The VBD-024-096DM is a Triac Dimmable Constant Voltage LED Driver Model designed for use with LED lighting systems.
• It operates with an input voltage of 100-130V AC and an input current of 1.53A, with a frequency range of 47/63Hz.
• The power factor of this LED driver is 0.68.
• Provides a regulated output voltage of 24V DC, with a maximum output power of 96W and an output regulated current of 4.0A, suitable for various LED lights.
• Dimming capability allows for both Phase-Cut and Triac Dimming, providing flexibility in controlling the brightness of LED lights.
• Designed for use in outdoor environments, with an IP67 rating, ensuring protection against moisture and dust.
• Class 2 certification indicates that it has been tested and meets certain safety standards.
• Dimensions: 203 x 70.41 x 42mm (8 x 2.77 x 1.65 in) without the box, 361.95 x 78.74 x 56.3mm (14.25 x 3.1 x 2.21 in) with the box.
• ETL certification ensures compliance with safety and performance standards for electrical products in North America.
