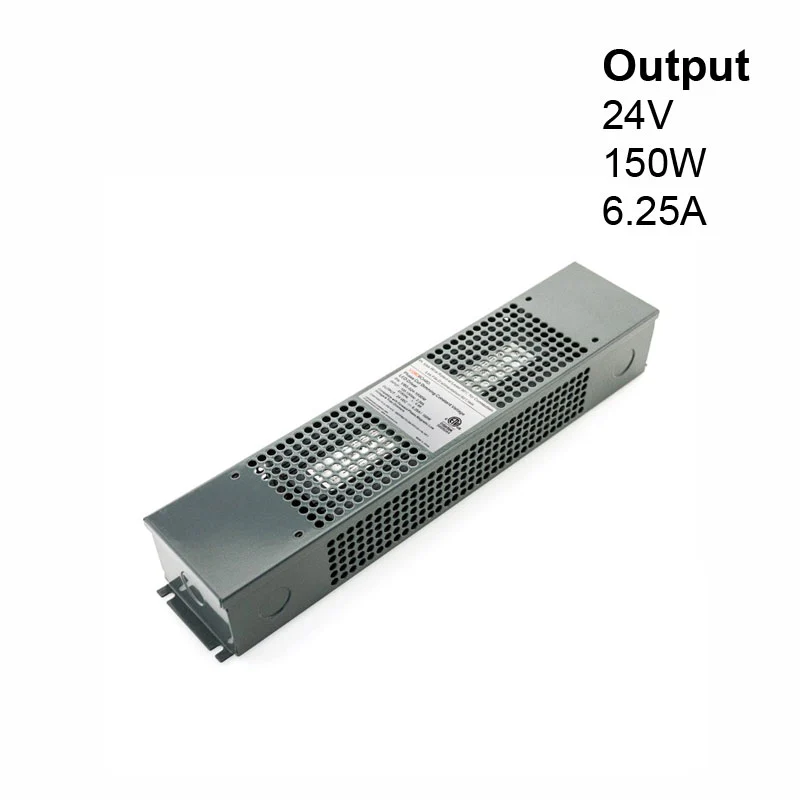

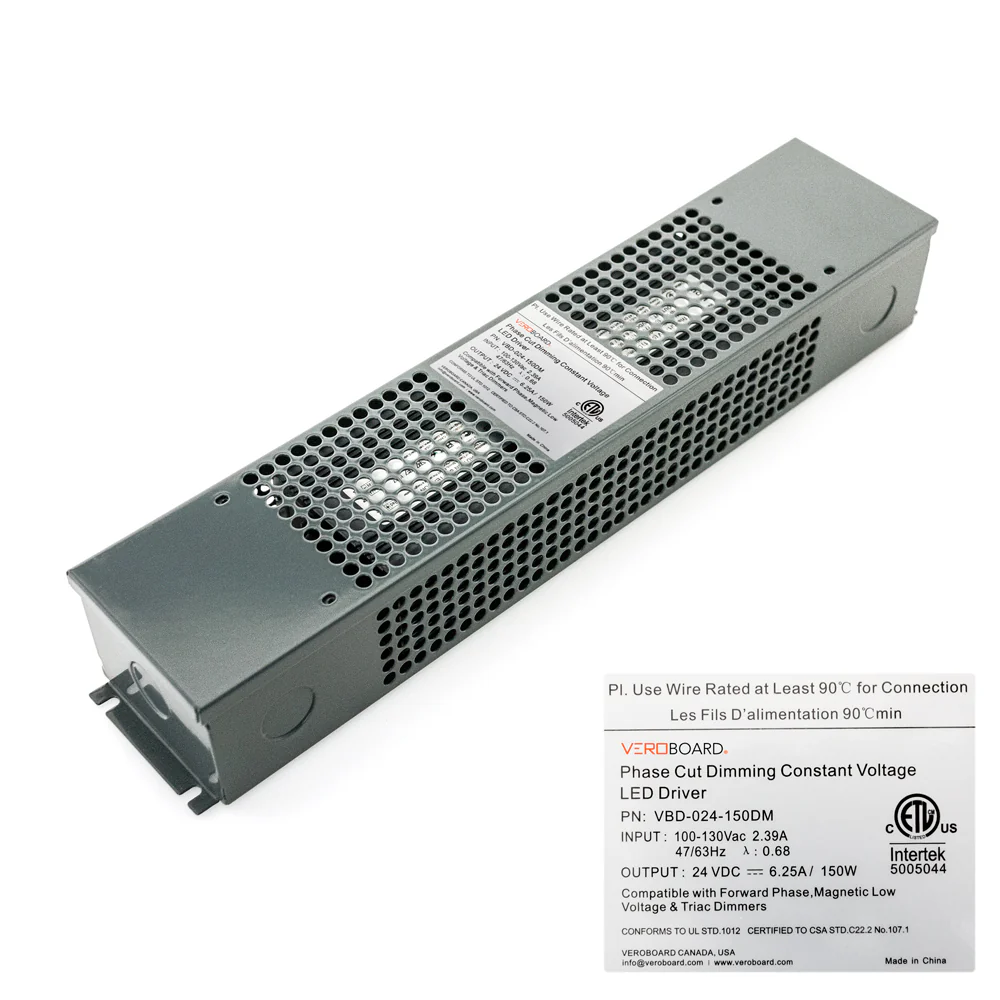

VBD-024-150DM Triac Dimmable Constant Voltage LED Driver, 24V 6.25A 150W



Model	VBD-024-150DM
Input Voltage	100-130V AC
Input Current	2.39A
Frequency	47/63Hz
Power Factor	0.68
Output Voltage	24V DC
Output regulated Current	6.25A
Output Power	150W max
Dimmable	Yes (Phase-cut and Triac Dimming)
IP Rating	IP67 (Outdoor Rated)
Dimensions (Without Box)	233.35 x 77.5x 45.5mm (9.18 x 3 x 1.5 in)
Dimensions (Box)	392.1 x 87.3 x 60.32mm (15.43 x 3.43 x 2.37 in)
Certifications

Applicable for dry, damp, and wet locations

Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers



Features:

• The VBD-024-150DM is a Triac Dimmable Constant Voltage LED Driver Model designed for use with LED lighting systems.
• It operates with an input voltage of 100-130V AC and an input current of 2.39A, with a frequency range of 47/63Hz.
• The power factor of this LED driver is 0.68.
• Provides a regulated output voltage of 24V DC, with a maximum output power of 150W.
• The output regulated current of this LED driver is 6.25A, making it suitable for powering a variety of LED lights.
• Dimming capability allows for both Phase-Cut and Triac Dimming, providing flexibility in controlling the brightness of LED lights.
• Designed for use in outdoor environments, with an IP67 rating.
• Dimensions: 233.35 x 77.5 x 45.5mm (9.18 x 3 x 1.5 in) without the box, 392.1 x 87.3 x 60.32mm (15.43 x 3.43 x 2.37 in) with the box.
• ETL certification, ensuring safety and compliance with electrical product standards in North America.
