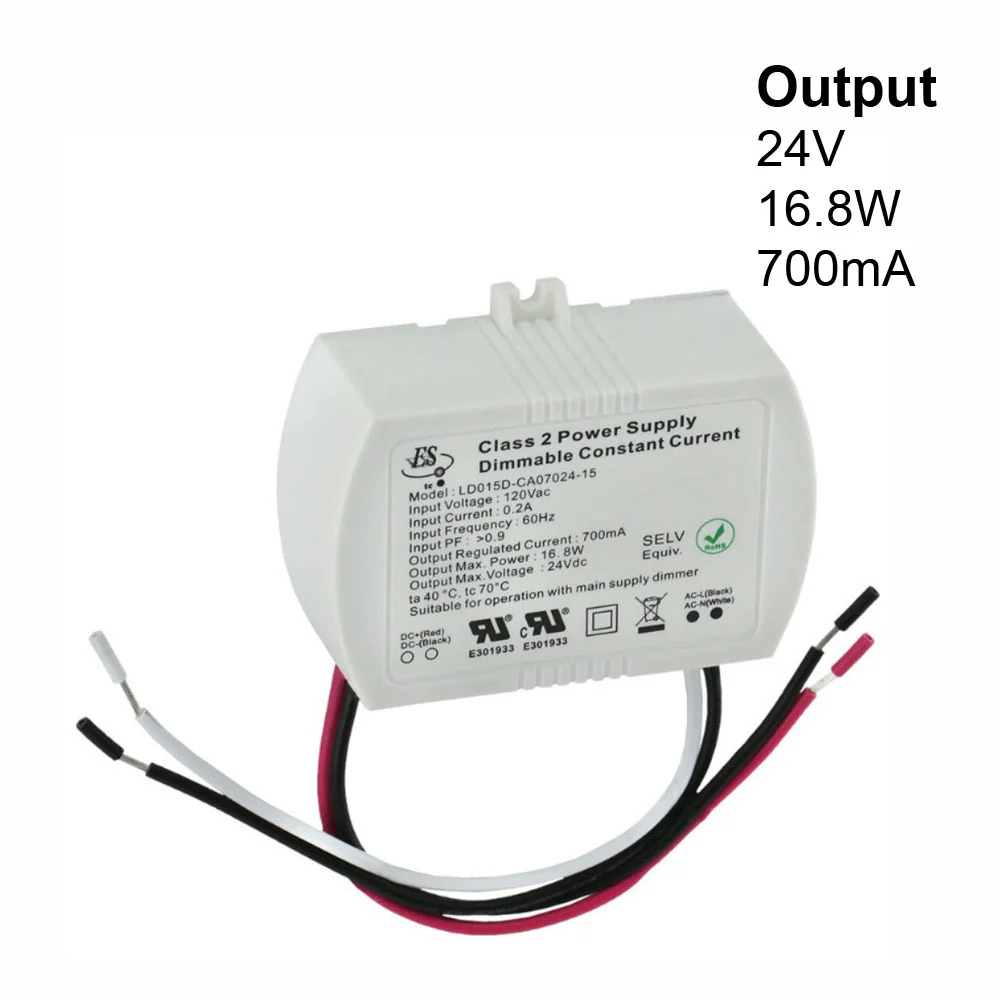

ES LD015D-CA07024-15 Constant Current LED Driver, 700mA 24V 16.8W max

Model	LD015D-CA07024-15
Input Voltage	120V AC
Input Current	0.2A
Frequency	60Hz
Output Regulated Current	700mA
Output Power	16.8W
Output Voltage	24V DC
Dimmable	Yes
Dimensions	85 x 55 x 35mm (3.5 x 2.25 x 1.4 in)
Class Certification	Class 2/ Class II
Certification

Applicable for dry and damp locations

Suitable for operation with main supply dimmer

Class 2 Power Supply with double layer insulation



Features:

• Constant current LED driver designed to regulate and provide a constant output current of 700mA
• Suitable for powering LED lighting fixtures requiring a constant current supply
• Input voltage rating of 120V AC, input current of 0.2A, and frequency rating of 60Hz
• Output voltage of 24V DC and maximum output power of 16.8W
• Dimmable feature allows for adjustable light output levels
• Compact size with dimensions of 85 x 55 x 35mm (3.5 x 2.25 x 1.4 in) for easy installation
• Class 2/Class II certified for meeting safety standards in low-voltage lighting systems
• Reliable and efficient solution for powering LED lighting systems with constant current supply and dimming functionality.
