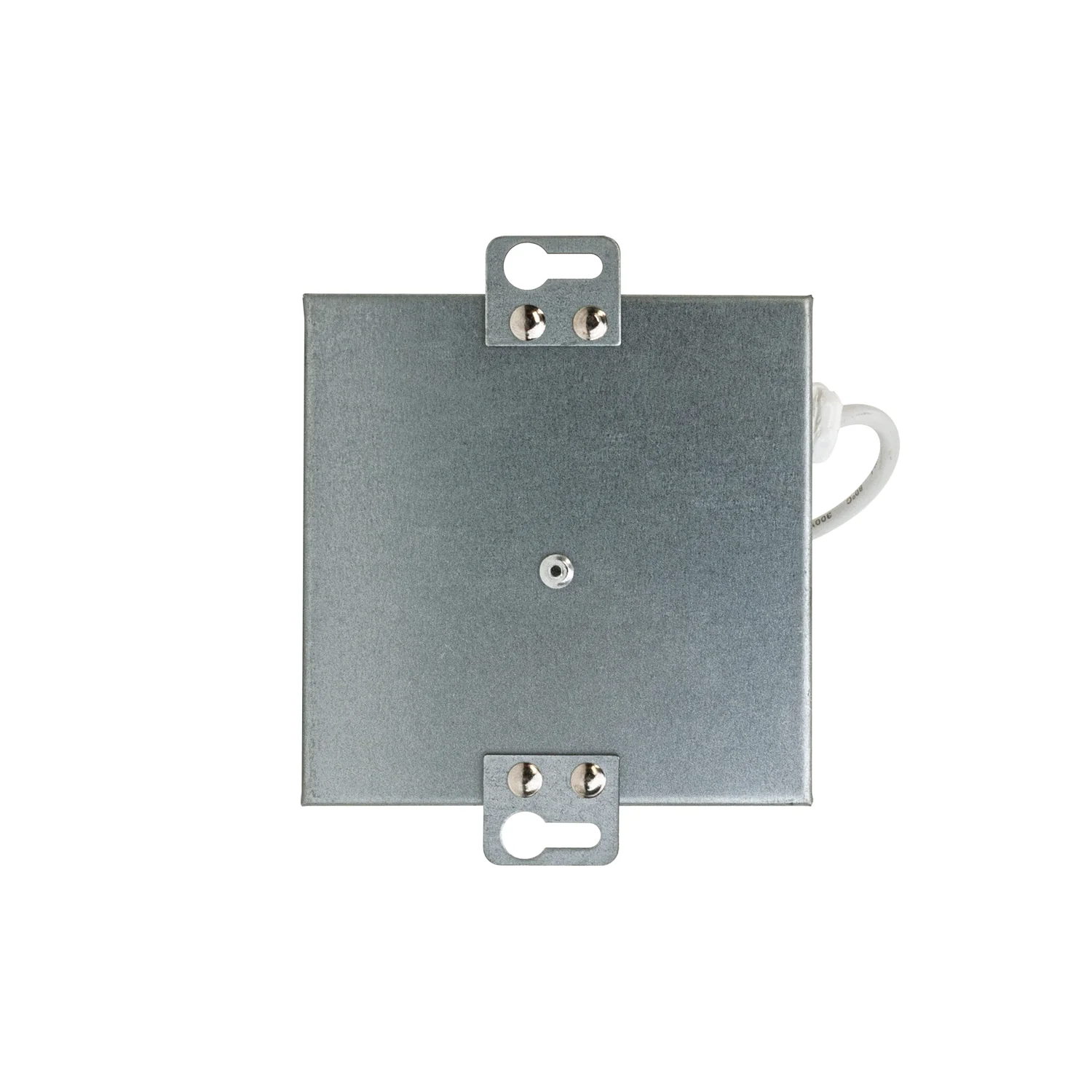

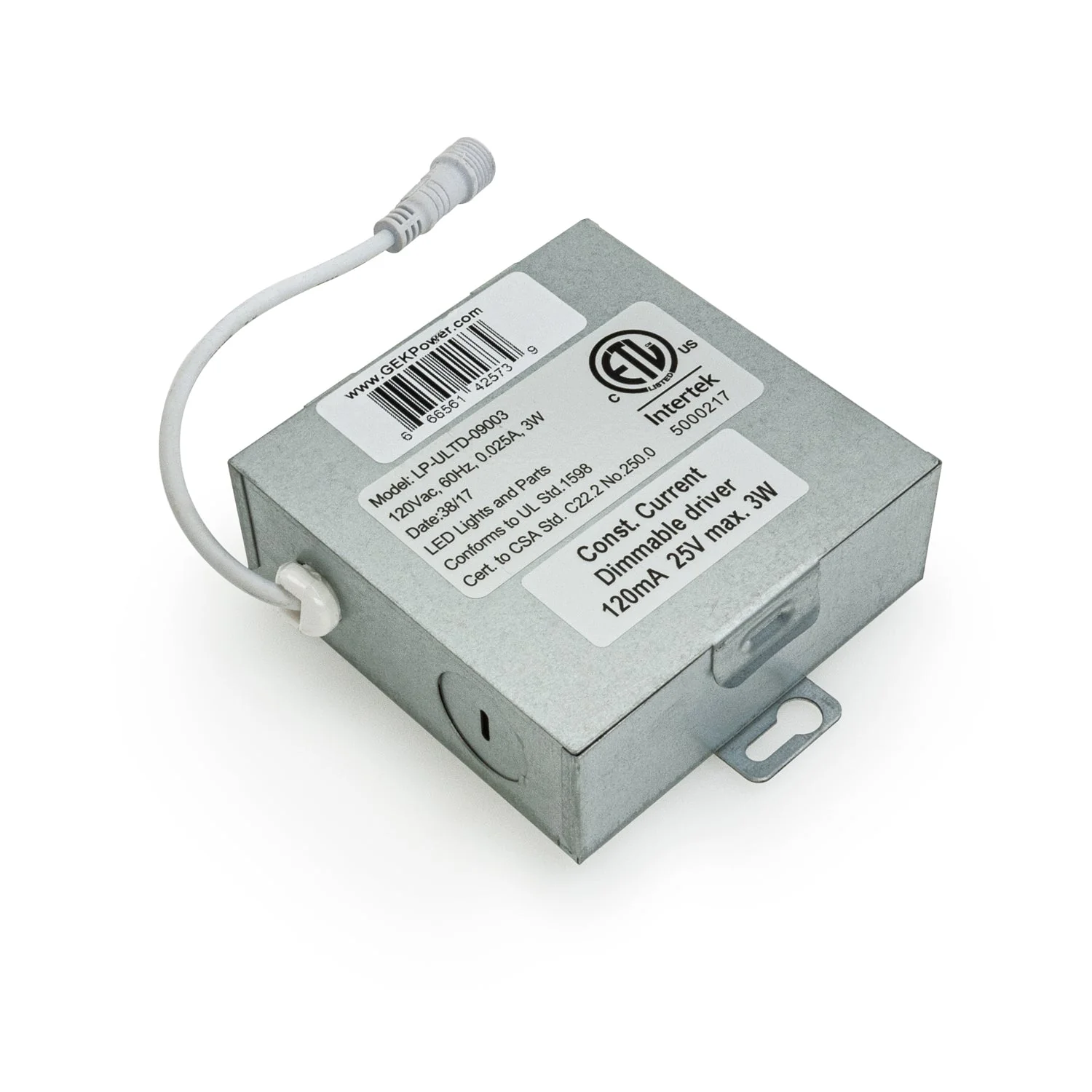

LP-ULTD-09003 Constant Current LED Junction Box Driver, 120mA 25V 3W

Model	LP-ULTD-09003
Input Voltage	120V AC
Input Current	0.025A
Frequency	60Hz
Output Regulated Current	120mA
Output Power	3W
Output Voltage	25V DC
Material	Aluminum
IP Rating	IP20
Working Temperature	-40°C to 80°C
Dimmable	Yes
Dimensions	88 x 88 x 33.30 mm (3.46 x 3.46 x 1.3 in)
Class Certification:	Class 2 Power Supply
Certification

Suitable for operations with main supply Dimmer

Suitable for DRY and DAMP locations

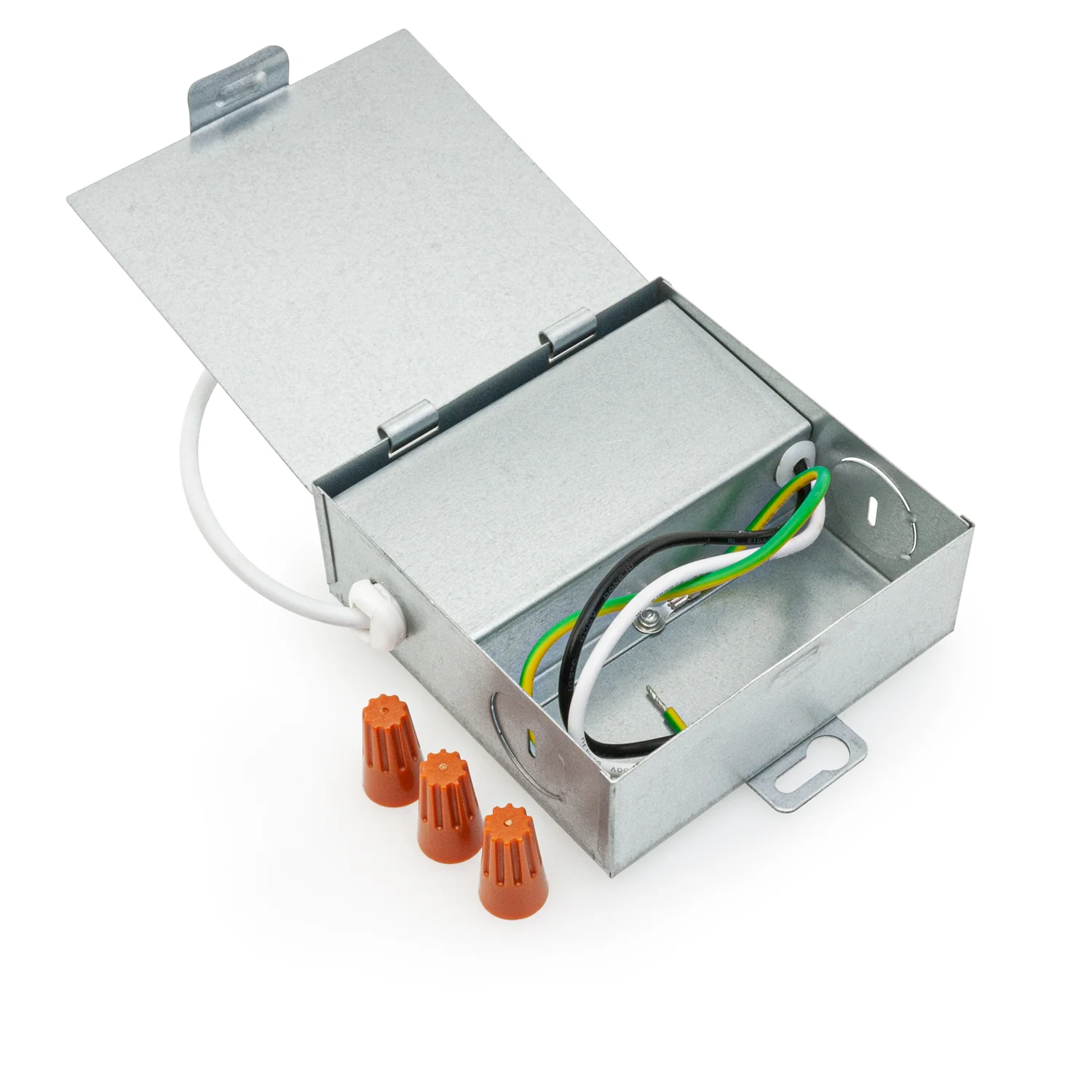

This junction box is airtight and damp rated. that helps in preventing any vapor, dust, or insects from passing.



Features:

• LP-ULTD-09003 Constant Current LED Junction Box Driver
• Provides constant output current of 120mA and voltage of 25V DC
• Input voltage: 120V AC, input current: 0.025A, frequency: 60Hz
• Suitable for low-power LED lighting systems
• Dimmable for brightness and intensity control
• Durable aluminum housing with IP20 rating for dust and moisture protection in indoor environments
• Wide operating temperature range of -40°C to 80°C for reliable performance in extreme conditions
• Compact dimensions: 88 x 88 x 33.30 mm (3.46 x 3.46 x 1.3 in)
• Easy installation
• Certified as Class 2 Power Supply for safety compliance
• Reliable and efficient solution for powering low-power LED lighting systems with constant current and voltage regulation, dimming capabilities, and durable aluminum housing with IP20 rating for dust and moisture protection.
