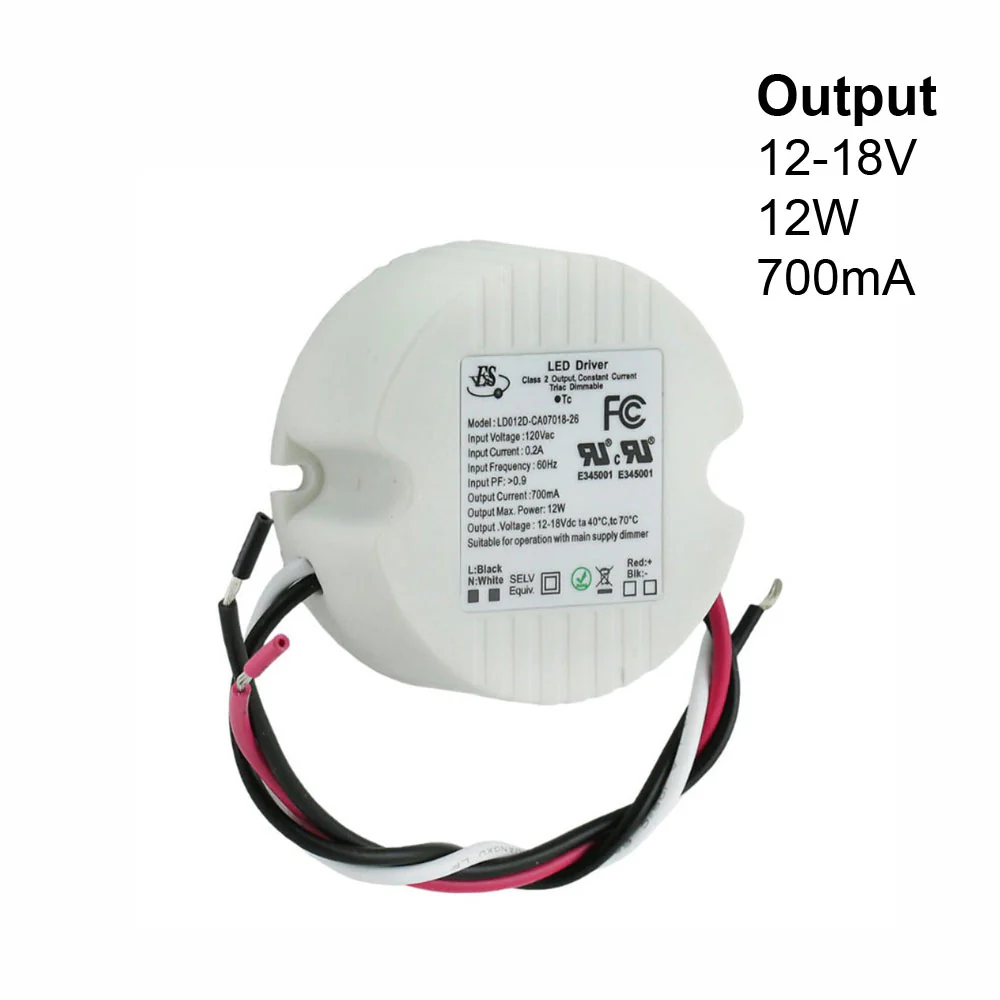

ES LD012D-CA07018-26 Constant Current LED Driver, 700mA 12-18V 12W max
| Model | LD012D-CA07018-26 |
| Input Voltage | 120V AC |
| Input Current | 0.2A |
| Frequency | 60Hz |
| Power Factor | P.F>0.9 |
| Output Voltage | 12-18V DC |
| Output Regulated Current | 700 mA |
| Output Power | 12W max |
| Dimmable | Yes |
| Dimensions | 70mm (2.75 in) Dia x 25mm (1 in) Depth |
| Class Certification | Class 2/ Class II |
| Certification |

|
| Applicable for dry and damp locations |
| Suitable for operation with main supply dimmer |
Features:
- ES LD012D-CA07018-26 Constant Current LED Driver for powering LED lighting systems
- Input voltage of 120V AC and input current of 0.2A, operating at a frequency of 60Hz
- High power factor (>0.9) for improved energy efficiency and reduced energy consumption
- Regulated output current of 700mA and maximum output power of 12W
- Output voltage range of 12-18V DC, suitable for a variety of LED lighting applications
- Dimmable functionality for adjusting the brightness of the LED lighting system
- Compact design with a diameter of 70mm (2.75 in) and a depth of 25mm (1 in), saving space during installation
- Certified as Class 2/Class II, meeting safety standards for indoor lighting applications
$7.93
Original: $26.43
-70%ES LD012D-CA07018-26 Constant Current LED Driver, 700mA 12-18V 12W max—
$26.43
$7.93
Description
| Model | LD012D-CA07018-26 |
| Input Voltage | 120V AC |
| Input Current | 0.2A |
| Frequency | 60Hz |
| Power Factor | P.F>0.9 |
| Output Voltage | 12-18V DC |
| Output Regulated Current | 700 mA |
| Output Power | 12W max |
| Dimmable | Yes |
| Dimensions | 70mm (2.75 in) Dia x 25mm (1 in) Depth |
| Class Certification | Class 2/ Class II |
| Certification |
|
| Applicable for dry and damp locations |
| Suitable for operation with main supply dimmer |
Features:
- ES LD012D-CA07018-26 Constant Current LED Driver for powering LED lighting systems
- Input voltage of 120V AC and input current of 0.2A, operating at a frequency of 60Hz
- High power factor (>0.9) for improved energy efficiency and reduced energy consumption
- Regulated output current of 700mA and maximum output power of 12W
- Output voltage range of 12-18V DC, suitable for a variety of LED lighting applications
- Dimmable functionality for adjusting the brightness of the LED lighting system
- Compact design with a diameter of 70mm (2.75 in) and a depth of 25mm (1 in), saving space during installation
- Certified as Class 2/Class II, meeting safety standards for indoor lighting applications
