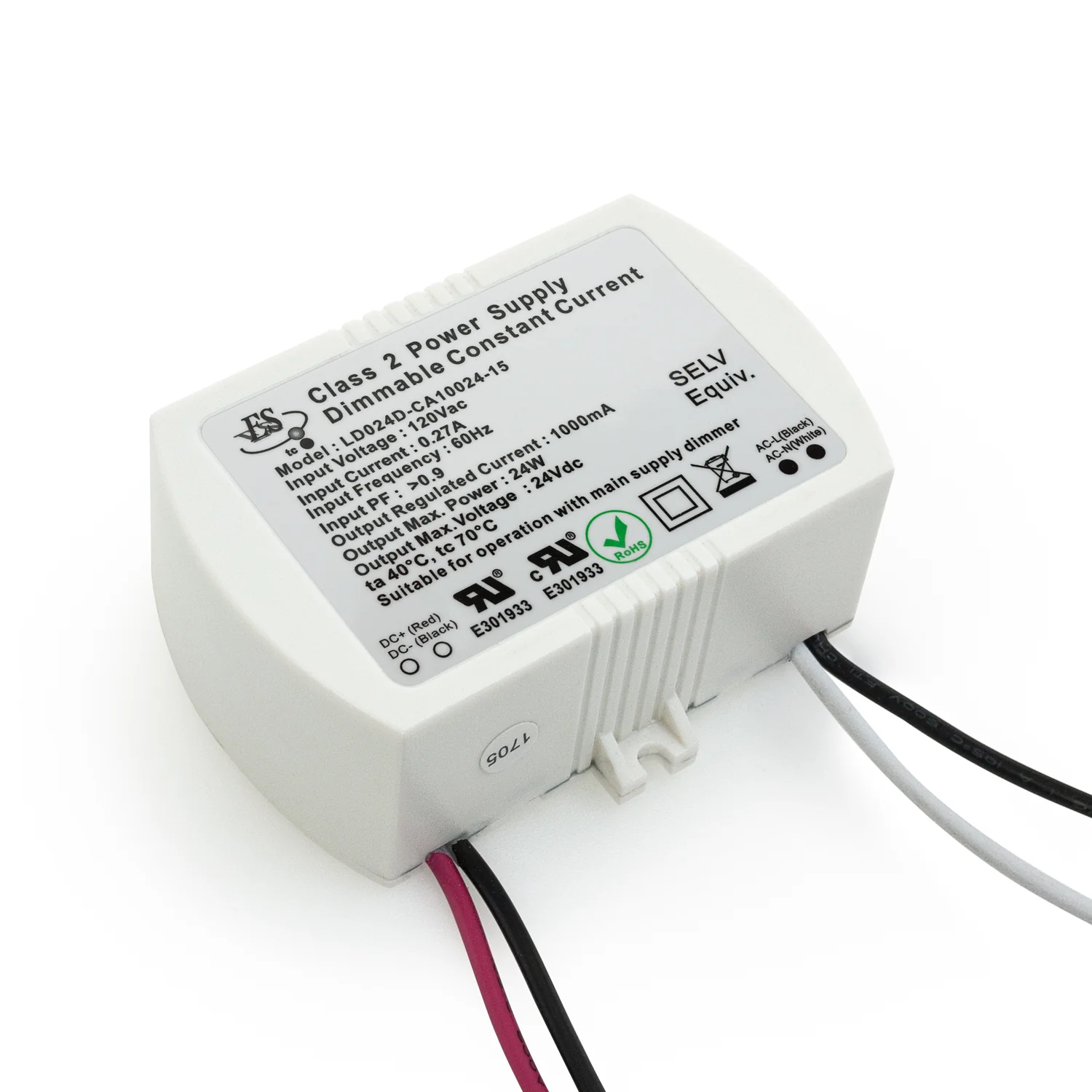

ES LD024D-CA10024-15 Constant Current LED Driver, 1000mA 24V 24W

Model	LD024D-CA10024-15
Input Voltage	120V AC
Input Current	0.27A
Input Frequency	60Hz
Output Regulated Current	1000mA
Output Power max	24W
Output Max Voltage	24V DC
Dimmable	Yes
Dimensions	85 x 54 x 32.5 mm (3.5 x 2.1 x 1.25 in)
Class Certification	Class 2/ Class II
Certification

Suitable for operation with main supply dimmer

For Dry and Damp Locations



Features:

• Constant current LED driver designed to provide regulated current of 1000mA for powering LED lights
• Intended for use with an input voltage of 120V AC and frequency of 60Hz
• Maximum output power of 24W, suitable for LED lights requiring up to 24 watts of power
• Output voltage range of 0-24V DC, compatible with a wide range of LED lights within that voltage range
• Dimmable feature allows for adjusting the brightness of LED lights using a compatible dimmer switch
• Compact dimensions of 85 x 55 x 35 mm (3.5 x 2.25 x 1.4 in) for easy installation in various locations
• Class 2/Class II certified for meeting safety standards in lighting applications
• Reliable and versatile LED driver for powering LED lights with regulated current, dimming capabilities, and safety certification.
