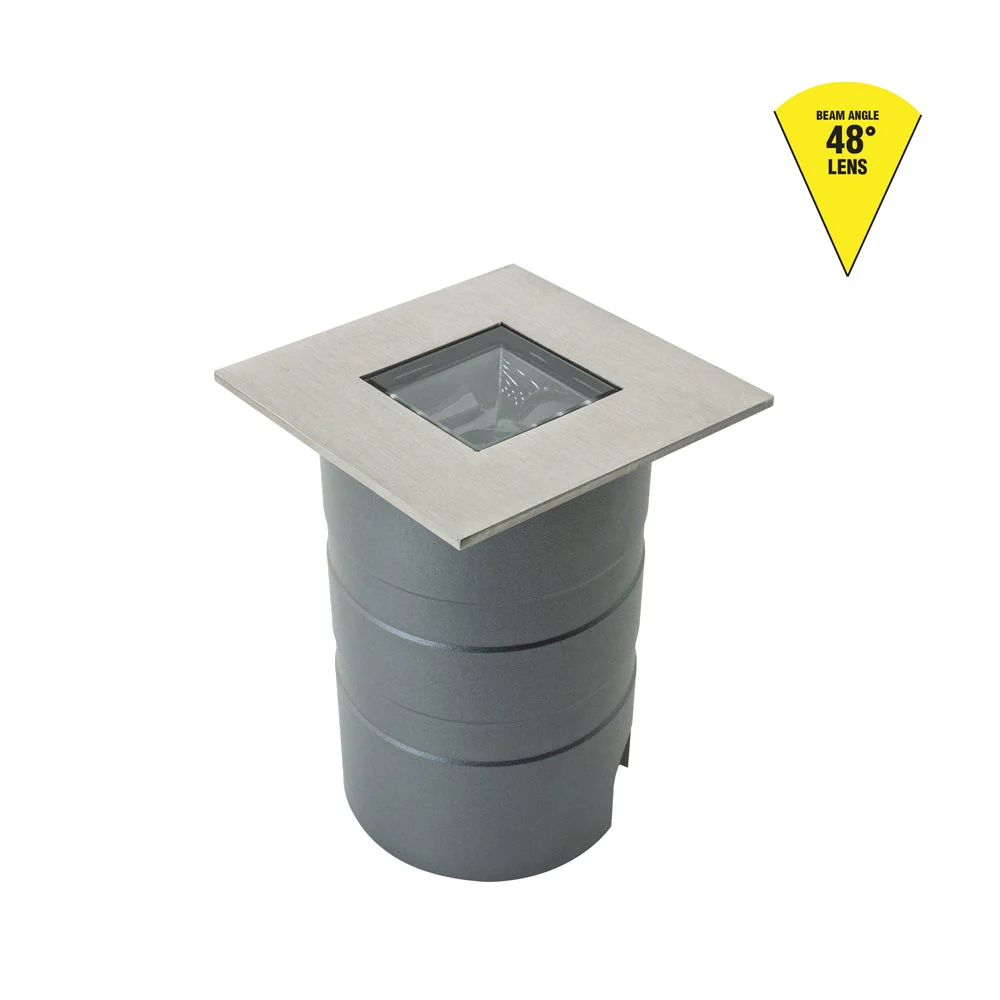

Square Inground Up light 48° lens, 24V 5W 3000K(Warm White)



Model	UL-1020-0500-A
Operating Voltage	24V DC
Light Source	1 x 5W
Total Power Consumption	5W
Color Temperature	3000K (Warm White)
Brightness	400-500 Lumens
Bulb Type	Integrated COB LED
Housing Material	Die-cast Aluminum body
Cap Color Finish	Stainless Steel
Optics	Primary optics (Fresnel lens)
Beam Angle	48° lens
IP Rating	IP67
IK Rating	IK06
Dimmable	Yes
Cut Size	Ø57.73mm (2.27in)
Cable Size	Length: 1m(39.3in) Ø7.5mm (0.29in) 18AWG
Dimensions with Housing	Side – 65 mm (2.5 inches) Height – 100 mm (3.95 inches) Base Diameter – 61 mm (2.4 inches)
Dimensions without Housing	Side –  65 mm (2.5 inches) Height – 61mm (2.4 inches)
Certification



Features:

• This up-light inground fixture seamlessly integrates into a wide variety of outdoor applications, providing a versatile lighting solution that can be easily incorporated into different settings.
• It creates a unique ambiance and offers functional illumination, making it suitable for various outdoor areas such as walkways, gardens, and other desired applications.
• These fixtures offer maximum flexibility in power options, allowing for the use of single or multiple LED Light transformers in both dimmable and non-dimmable configurations, providing versatility and control over the lighting setup.
• The fixture comes with a housing, providing the option for installation with or without the housing, depending on individual preferences and installation requirements.
• These recessed lights have an aesthetic appeal and are popularly installed as LED pathway lights, pool deck lights, and patio lights, enhancing the visual appeal and functionality of outdoor spaces.
• The IP67 rating ensures that the lights remain lit in all types of weather conditions and are resilient to being stepped upon, offering durability and reliability in outdoor environments.
