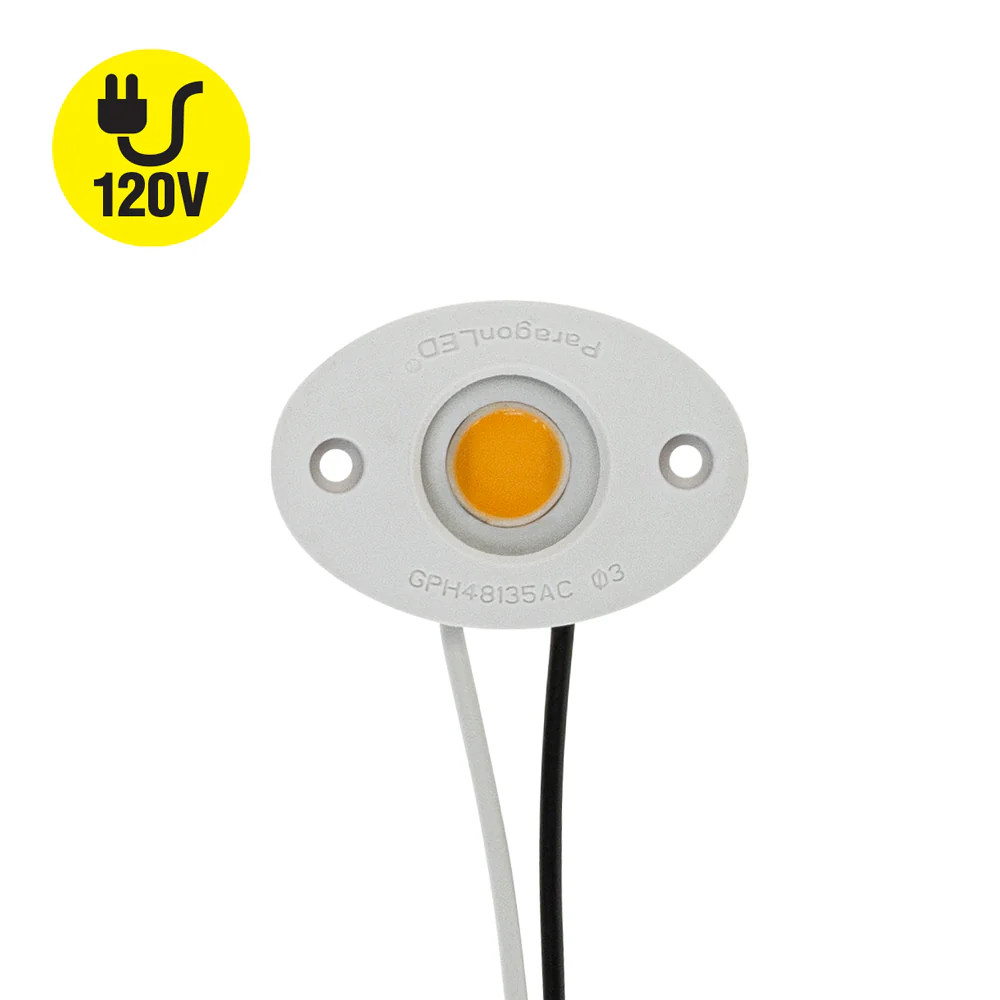

CDAC-20-30135-120V-30 COB Paragon LED Module with GPH48135A LED Holder, 120V 6W 3000K

Model No	CDAC-20-30135-120V-30
COB Holder Model No	GPH48135AC
LED Type	COB LED
No LED chips	20
Wattage:	6W
Voltage:	120V AC
Luminous Intensity	420 lumens
Color Temperature	3000K (Warm White)
Dimmable	Yes
Rendering Index	CRI>90
IP Rating	IP20 (Indoor rated)

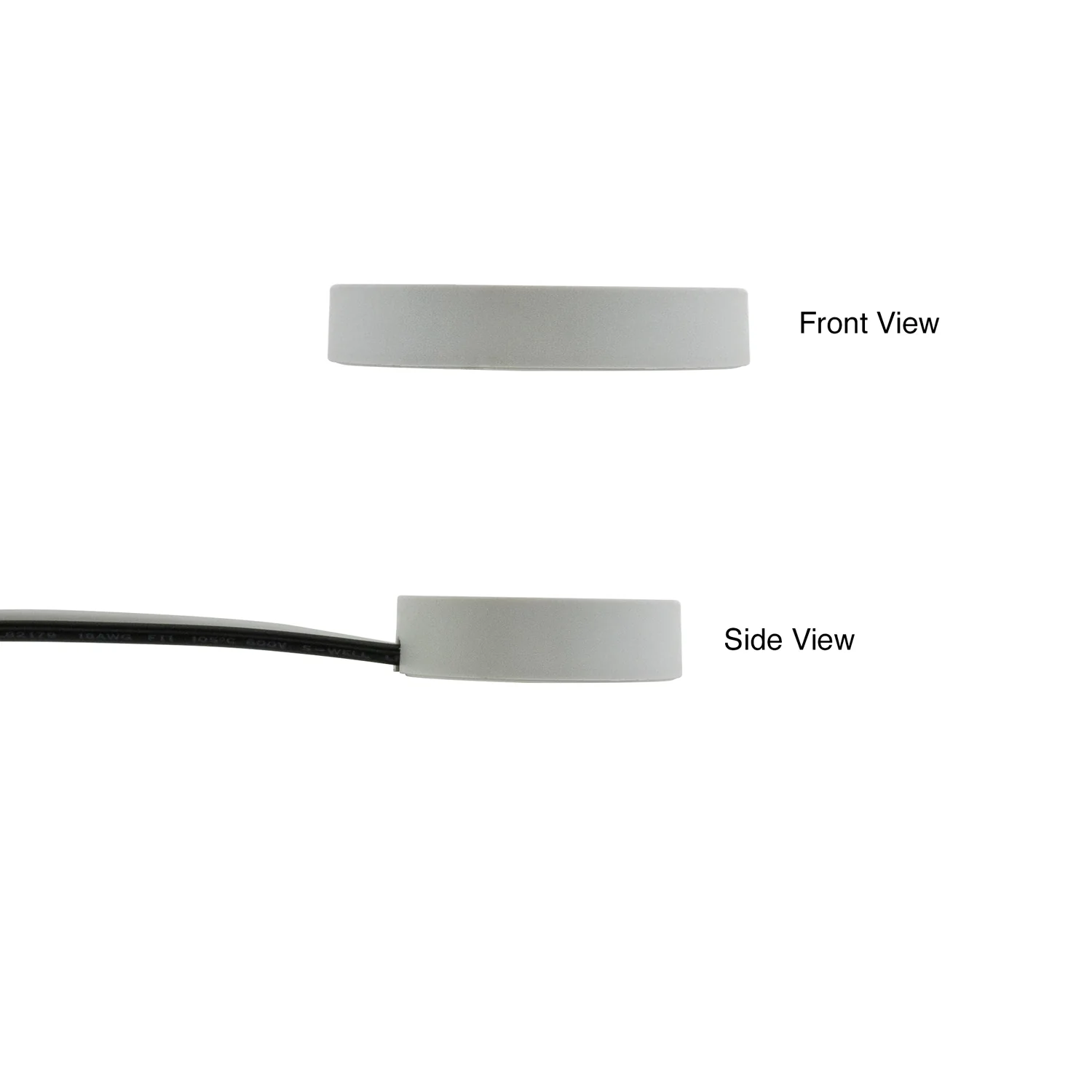

COB Holder Dimensions	∅55 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in)
COB Module Outer Diameter	∅27mm (1.06 in)
Operating Temperature	-60 ~ +105℃
Storage Temperature	-60 ~ +105℃
Assembly process Temperature	<300℃
Solder joint point	<105℃
Dielectric Breakdown Voltage of Thermal Pad	>4KV

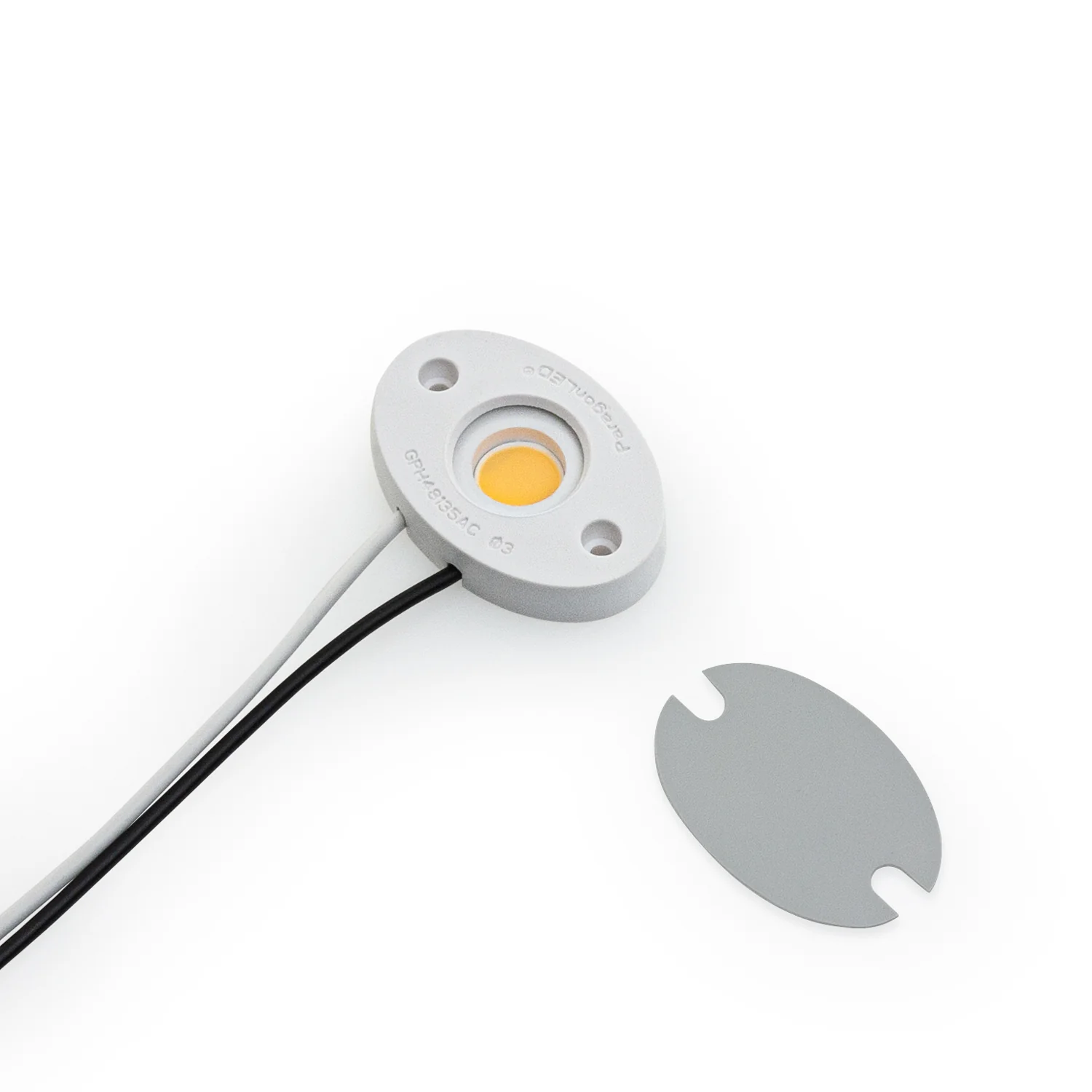

Included Content	COB Module, COB Holder with Glass Protection, Thermal Pad
Certifications

Features:

• Low power consumption and high energy efficiency.
• Suitable for use in damp locations.
• Requires an aluminum heat sink to prevent overheating and potential luminous decay.
• COB LEDs provide brighter light output, consume less power, and offer a higher quality beam compared to older LED technologies.
• It is important to properly ground light fixtures during the design of lamps.
• COB LEDs are compatible with various types of luminaires.

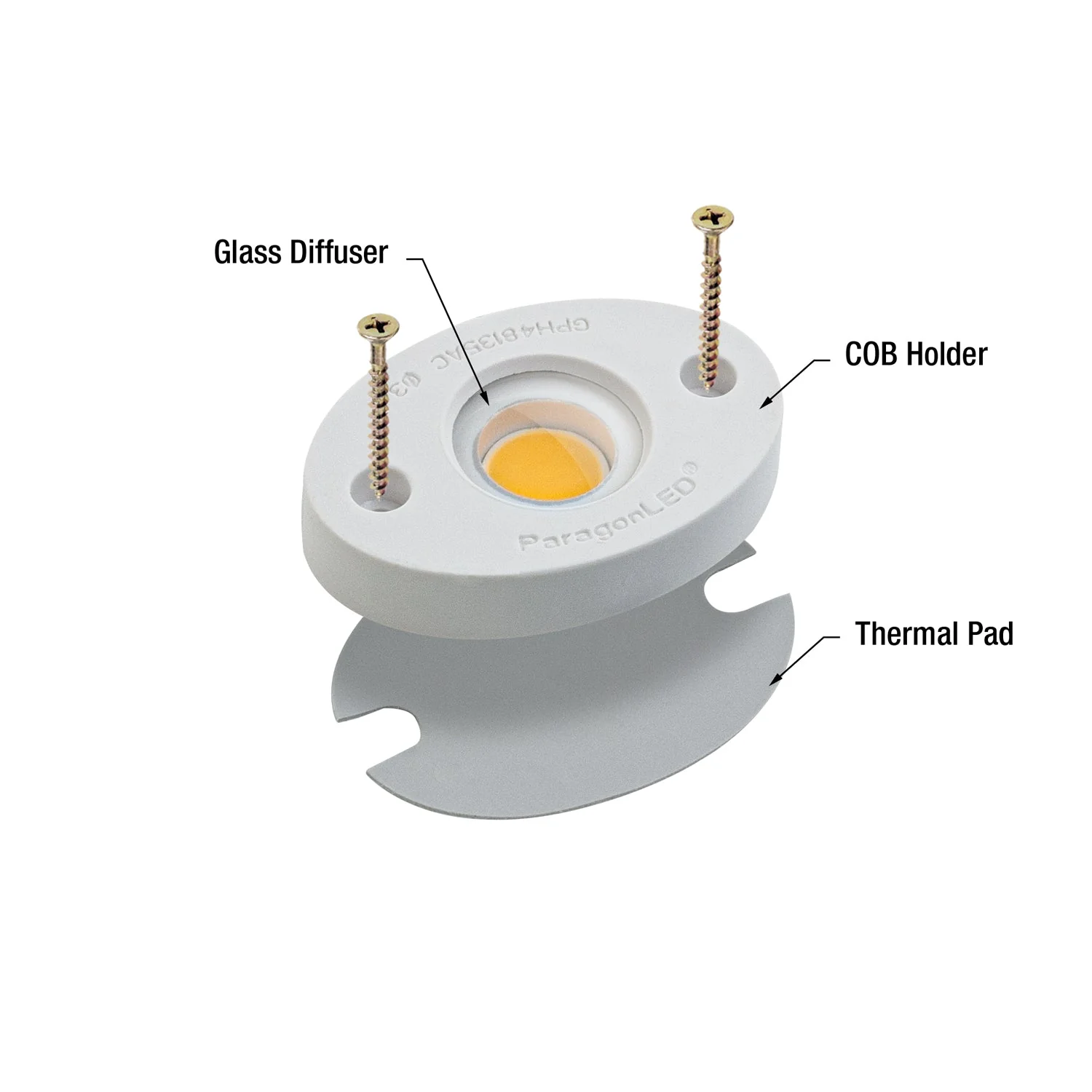

• The COB holder with a glass diffuser allows for secure mechanical installation, electrical connection, and attachment to a heat sink.
• The silicone grease thermal pad enhances heat dissipation, extending the lifespan of the module.
